SIERRA Water Pump Kit w/o Housing for Yamaha, F70A (2010-17) / 18-3494

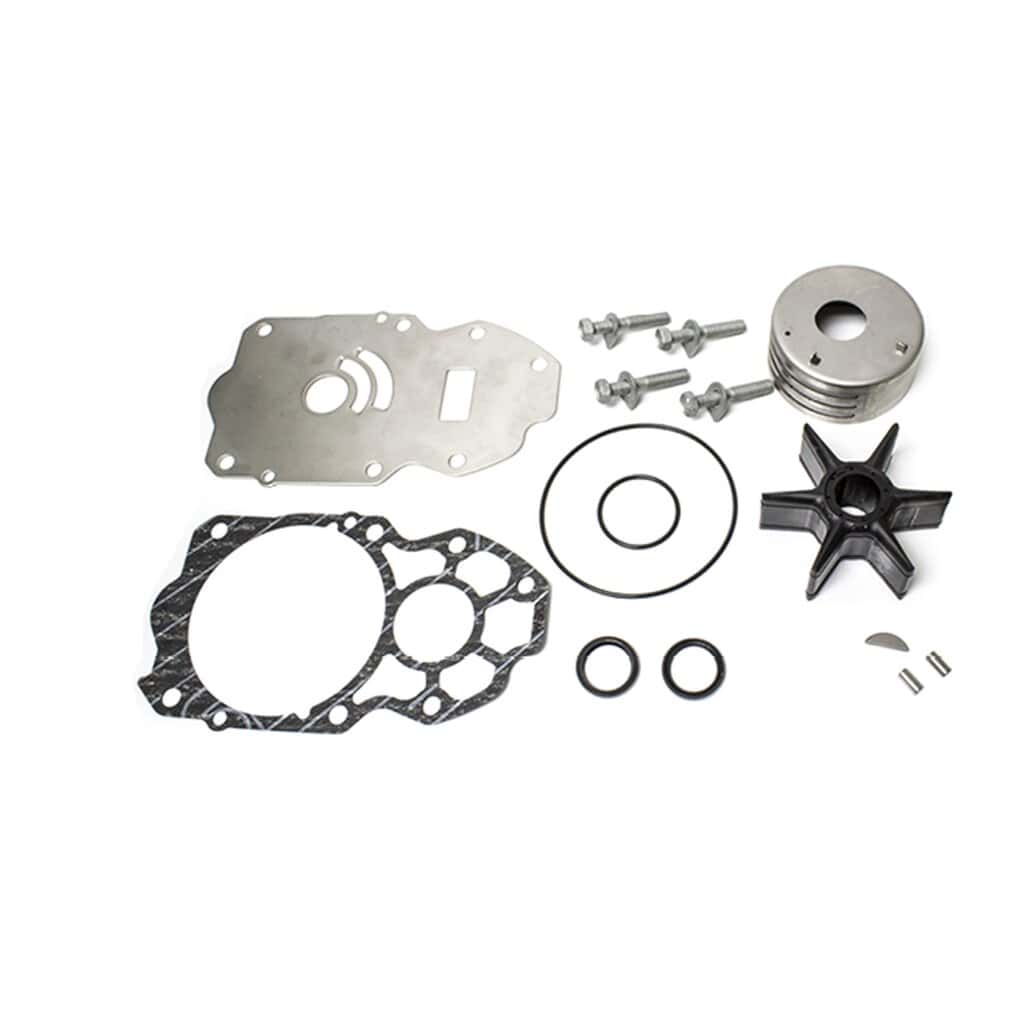

Description SIERRA Water Pump Kit (without Housing) for Yamaha, F70A (2010-17) / 18-3494 This is a water pump kit without housing manufactured by Sierra. PRODUCT CODE: S18-3494 This water pump kit is interchangeable with or replaces Yamaha Outboard 6CJ-W0078-00-00. This water pump kit is compatible with Yamaha F70A (2010-17). CONTAINS PRODUCT NUMBER DESCRIPTION OE # QUANTITY S18-9083 Cover, Water Pump Housing 63D-44312-00 1 S18-3449 Cup, Insert 63D-44322-00 1 S18-1830 Seal, Water Damper 2 663-44366-00 1 NSS Gasket, Water Pump 6CJ-44315-00 1 S18-0449 Gasket, Water Pump 6CJ-44316-00 1 S18-3186 Plate, Wear 6CJ-44323-00 1 S18-0450 Gasket, Water Pump 6CJ-44324-00 1 S18-3069 Impeller 6H3-44352-00 1 NSS Bolt, With Washer 90119-08M14 2 S18-0260 Bolt, With Washer 90119-08M33 2 S18-3297 Key, Woodruff (697) 90280-03M03 1 S18-0297 Oil Seal (663) 93101-23070 2 S18-7436 O-Ring 93210-46044 1 NSS Pin, Dowel (688) 93604-10M03 2 Weight 0.36741 KG, Length 5.59 cm, Height 22.35 cm, Width 21.08 cm
